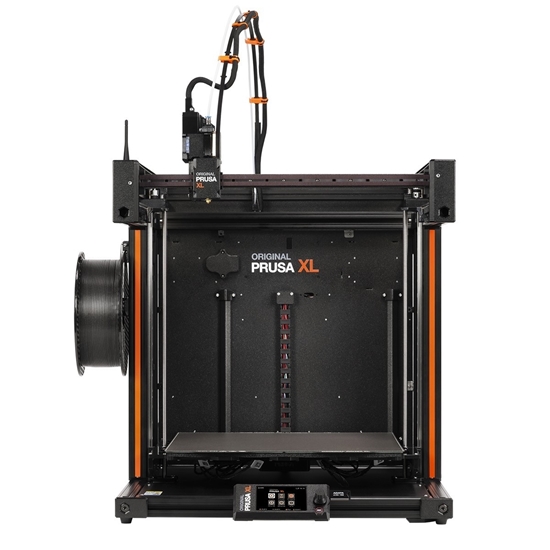

Original Prusa XL

The Original Prusa XL is a large-format CoreXY FDM 3D printer intended for users who require significantly greater build volume and process flexibility compared to typical desktop systems. In its single-toolhead configuration, the XL delivers consistent dimensional accuracy across a 360 × 360 × 360 mm build volume. The machine’s design includes a segmented heated bed, automatic probing and mesh leveling, network connectivity, and an architecture that supports future expansion to multiple toolheads. It is suitable for larger prototypes, tooling components, and functional assemblies that would otherwise need segmentation on smaller platforms.

Κατόπιν Παραγγελίας

Τιμή: 2.298,96 €

Toolheads *

360×360×360 mm

0.05-0.30 mm

1.75mm

290 °C / 554 °F

Περιγραφή

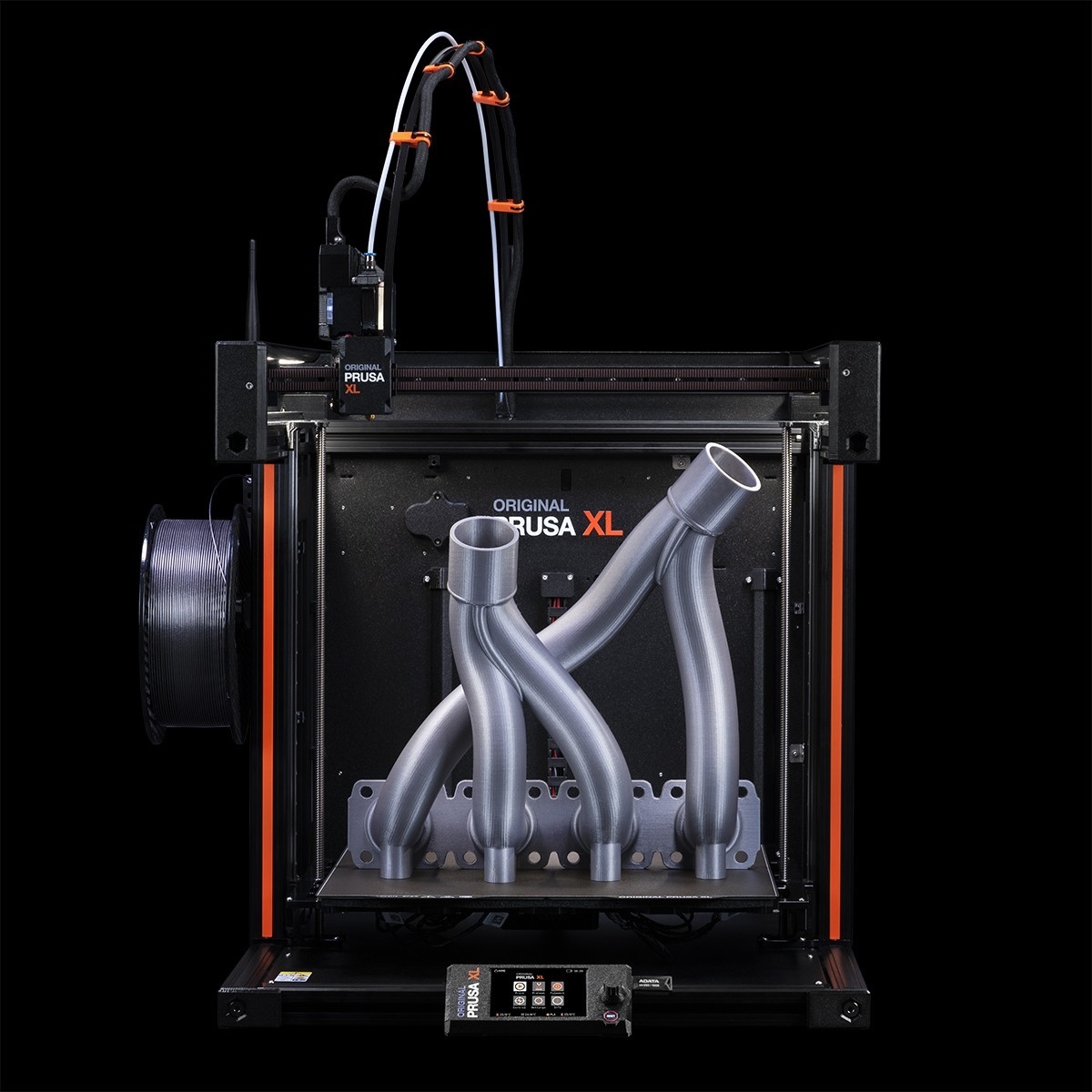

Structural Design and Large Build Platform

The XL’s structural frame is engineered to maintain rigidity over extended travel distances. The segmented heating bed consists of individually controlled zones, reducing energy use for smaller prints while providing thermal uniformity on large parts.

Magnetic removable plates support different surface finishes, enabling tailored adhesion strategies for varied materials. The robust mechanical layout and precision guidance systems ensure repeatability across large prints with minimal manual compensation.

Εικόνα για την κατηγορία Structural Design and Large Build Platform

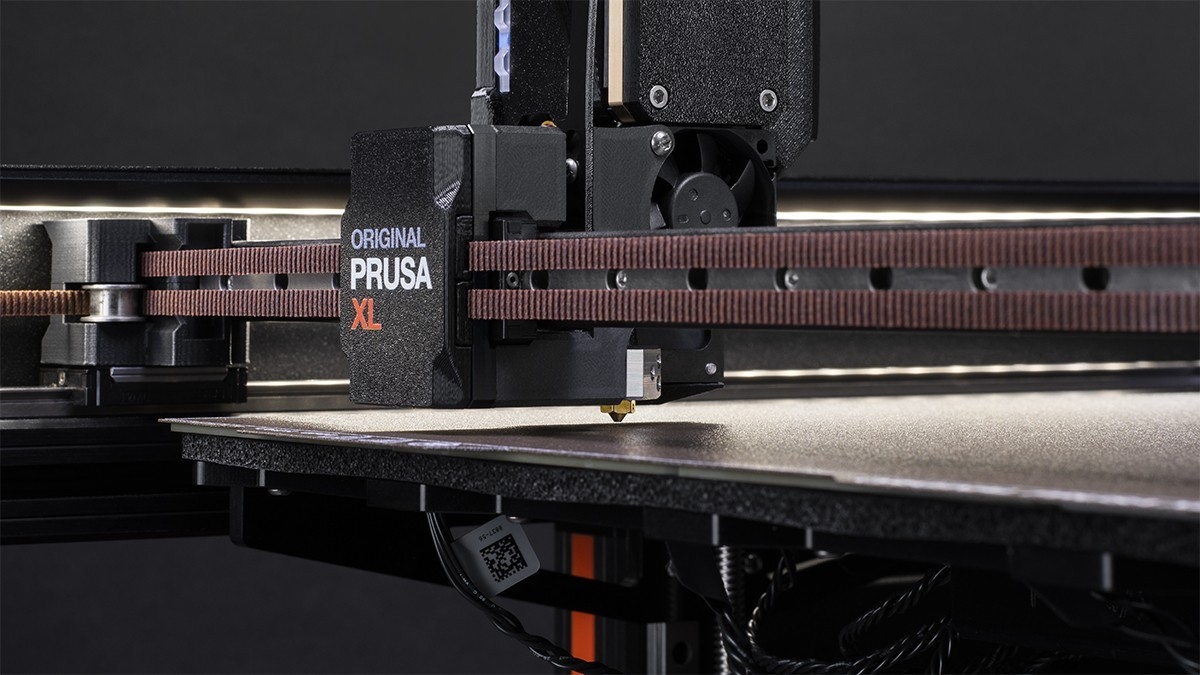

Toolhead and Expandability

This single-toolhead configuration provides a direct-drive extrusion system with a precision hotend capable of elevated temperatures. The core platform is built around a modular tool-changer interface; future expansion to dual or multi-tool systems is possible with optional upgrades.

This allows users to start with a single extrusion head and expand to multiple materials or colors as workflow requirements evolve. Tool interfaces are designed for repeatable alignment, reducing recalibration needs after tool changes.

Εικόνα για την κατηγορία Toolhead and Expandability

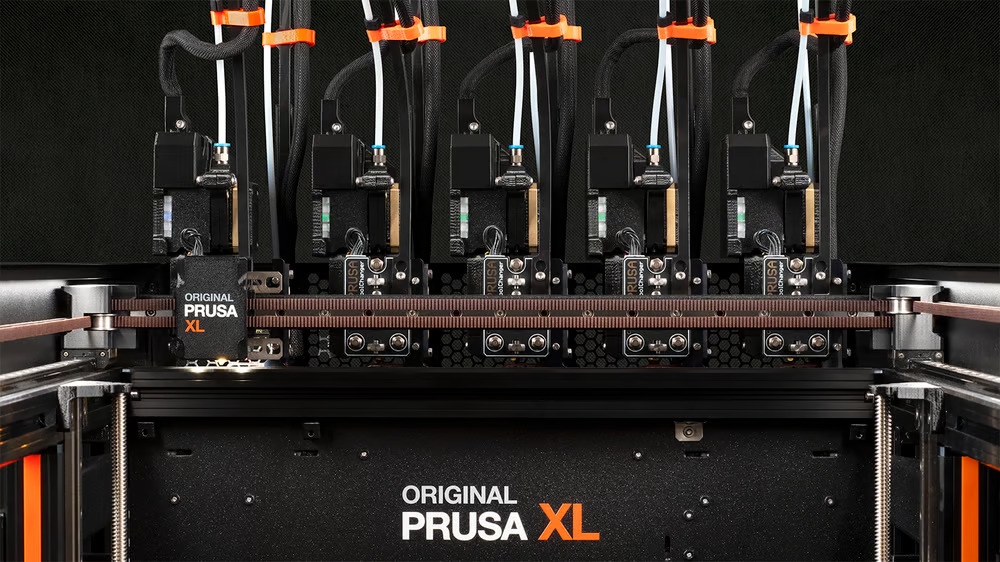

Automatic Calibration and Probing Systems

The XL uses an integrated loadcell sensor and multiple thermistors to support automatic first-layer calibration and mesh bed leveling across the build area. These systems detect nozzle contact and surface deviations, compensating for minor irregularities without manual intervention.

Automatic calibration reduces setup time and improves first-print success rates on large surfaces where uniform first-layer adhesion is critical.

Εικόνα για την κατηγορία Automatic Calibration and Probing Systems

Material Compatibility and Characteristics

Supported materials include PLA, PETG, Flex, PVA, PC, PP, CPE, and PVB. When combined with an optional enclosure and filtration add-on, the XL can process materials that are more sensitive to cooling and shrinkage, such as ABS, ASA, HIPS, and PA (nylon).

This expands its utility to parts requiring toughness, elevated temperature performance, or chemical resistance. The broad material set enables both large functional components and complex assemblies where material choice is tied to mechanical or environmental demands.

Εικόνα για την κατηγορία Material Compatibility and Characteristics

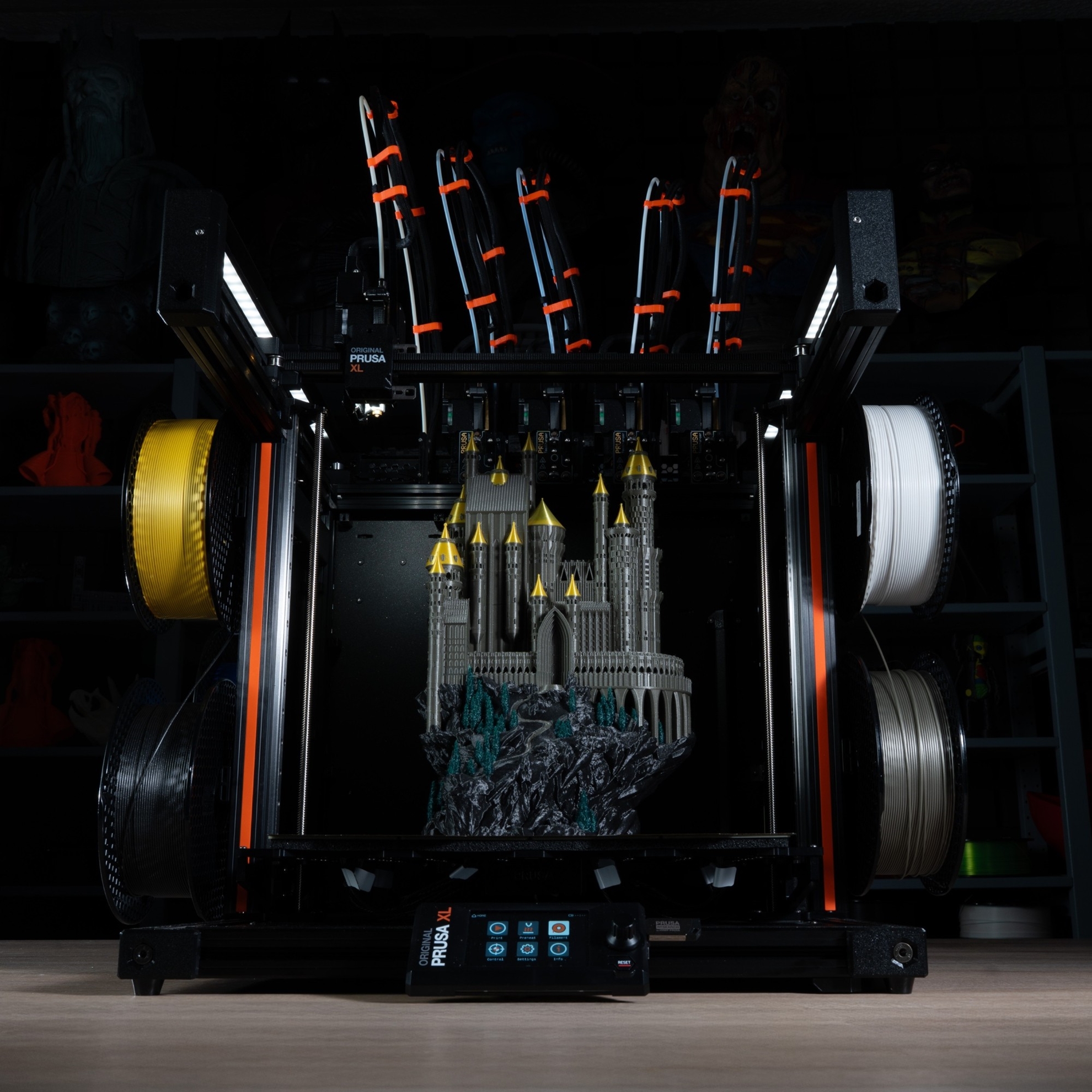

Connectivity and Process Integration

The XL supports USB and LAN print media along with integration via Prusa Connect, facilitating remote job management and monitoring. Sensor feedback includes filament detection and system health monitoring, supporting unattended operation within scheduled production workflows.

This connectivity and monitoring capability are relevant when multiple machines are managed collectively or integrated into a digital manufacturing environment.

Εικόνα για την κατηγορία Connectivity and Process Integration

Build Volume	360×360×360 mm
Ύψος Layer	0.05-0.30 mm
Διάμετρος Νήματος	1.75mm
Μέγιστη Θερμοκρασία Κεφαλής	290 °C / 554 °F
Διαθέσιμα Υλικά Εκτύπωσης	PLA, PETG, Flex, PVA, PC, PP, CPE, PVB and when using the Original Prusa Enclosure with filtration add-on ABS, ASA, HIPS, PA
Μέγιστη Θερμοκρασία Heatbed	120 °C / 248 °F
Extruder	Nextruder, Direct Drive, E3D V6 compatible (with adapter)
Επιφάνεια Εκτύπωσης	Segmented heatbed with 16 individually controlled segments, removable magnetic steel sheets with different surface finishes
Διαστάσεις εκτυπωτή (χωρίς καρούλι)	27.9 kg (single-tool) / 29.3 kg (dual-head) / 33.7 kg (five-head), 700 mm (w) × 900 mm (h) × 720 mm (d) (27.5’’×35.5’’×28.5’’) including side spoolholders and the separate top enclosure cover

Προϊόντα της ίδιας κατηγορίας

Δες τον

Original Prusa SL1S SPEED 3D Printer + CW1S BUNDLE

Special bundle of the Original Prusa SL1S 3D printer and the Curing and Washing Machine (CW1S). You will save 179 € (VAT incl.) when you buy this bundle instead of buying both items separately. Original Prusa SL1S produces high-quality prints with even more detail than the Original Prusa SL1. It is compatible with a wide range of resins for various applications.

2.604,00 €

Κατόπιν Παραγγελίας

Build Volume127×80×150 mm

Δες τον

Original Prusa i3 MK3S+

Ο αυθεντικός Prusa i3 MK3S+ είναι η τελευταία έκδοση των βραβευμένων 3D Printers της Prusa. Αναβαθμισμένο σε σχέση με το απλό MK3S με έναν ολοκαίνουργιο SuperPINDA αισθητήρα για καλύτερη πρώτη στρώση, υψηλής ποιότητας ρουλεμάν και διάφορες χρήσιμες προσαρμογές στον σχεδιασμό που διευκολύνουν την συναρμολόγηση και συντήρηση του εκτυπωτή. Η συσκευασία περιλαμβάνει επιπλέον δωρεάν ένα φύλλο Smooth PEI και ένα κιλό ασημί PLA.

1.004,40 €

Κατόπιν Παραγγελίας

Build Volume25×21×21 cm (9.84"×8.3"×8.3")

Ύψος Layer0.05 - 0.35 mm

Διάμετρος Ακροφυσίου0.4mm + other diameters/nozzles supported

Διάμετρος Νήματος1.75mm

Δες τον

Original Prusa MK4S 3D Printer

The MK4S is the latest iteration of our flagship 3D printing workhorse. Easy to set up and run, with top-class reliability and safety features, the MK4S delivers the highest quality 3D prints faster than ever. Designed and built in the EU.

1.302,00 €

Κατόπιν Παραγγελίας

Build Volume250 x 210 x 220 mm | 9.84 x 8.3 x 8.6 in

Ύψος Layer0.05-0.30 mm

Διάμετρος Νήματος1.75mm

Μέγιστη Θερμοκρασία Κεφαλής290 °C / 554 °F

Δες τον

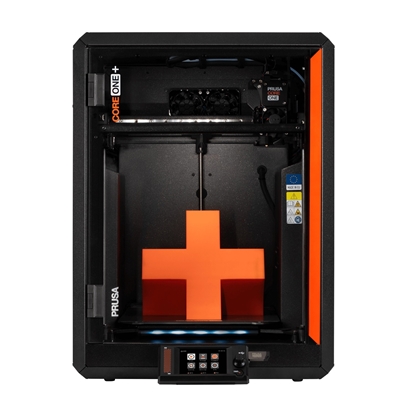

Prusa CORE One+
